MTSi PAG-Series Specificaations


Overview     Configurations      Specifications

Media Technology Systems PAG-Series amplifiers are specifically designed for applications requiring large numbers of constant voltage (switchable 70 or 100V) amplifier channels. Such applications include transportation ector (Airports, rail networks, subway stations) Retail, hospitality, theme parks, etc..

MTSi PAG-Series amplifiers employ Class-D output topology for maximum efficiency, minimal heat dissipation and as a result exhibit excellent longevity whilst not requiring forced air cooling with inherent service demands. All MTSi amplifiers utilize Switch Mode Power Supply (SMPS) again for maximum efficiency and importantly, super regulation of power supply rails. Effectively the COM-Series will deliver full specified power regardless of the A/C power conditions. Conventional amplifiers using linear supplies lose power output capability with any reduction of incoming power. For example a conventional 200 Watt amplifier operating on 10% less A/C power: 120V down to 108 Volts, will output a maximum of 160 Watts. The COM-Series SMPS supply give specified output power regardless, whether operating on anywhere between 86 - 265 Volts. In addition, com-Series amplifiers use a Power Factor Corrected supply which complies with incoming legislation in many markets by avoiding pollution of the electrical supply.

PAG-Series amplifiers (-S versions) optionally allow serial control and monitoring, including fault and load monitoring. PAG-Series amplifier output stages incorporate intelligent load limiting based on maximum current conditions. The minimum load can be, less than the 4ω rated output, as long as the current does not exceed the rated limit of that channel. Automatic changeover relays on the output of all channels are provided where the N/O connection of the relay is available at the rear port of the amplifier. This enables any of the internal amplifier channels to act as a back-up in case of primary amplifier channel failure. Alternatively, an external MTSI amplifier channel can be used to back-up the primary amplifier channel via the same port.

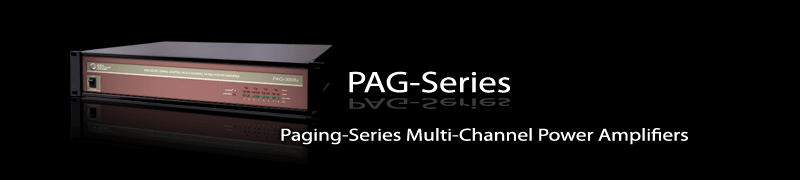

MTS PAG-Series Multi-Channel Paging Amplifier

Click this Button to download PAG-Series Product Brochure

Click on this button to download the MTS amplifier User's Manual
  • 2, 4, 6 or 8 channels.
  • Four Power levels:
    • 75 Watts
    • 150 Watts
    • 300 Watts
    • 600 Watts (2 or 4 channel only)
  • Switchable 70 or 100volts output.
  • Protection against short circuit, DC and over temperature.
  • Optional Control & Monitoring of all amplifier parameters.
  • Optional Serial interface (RS485 multi-drop).
  • "World Power" Full Specified output power regardless of A/C power level from 86-265v.
  • Automatic Output changeover in case of channel failure.
