The Media Technology Systems AMX 8.8 is a CobraNet® full rack width1U rack mount configuration with 8 analog mic/line inputs and 8 analog outputs and DSP controlled automixer function built in.

Overview       Specifications

The MTSI AMX 8.8CN is a 1U rack mount Automatic Microphone Mixer with 8 analog mic/line inputs, 8 analog line level outputs, 16 CobraNet® input streams and 16 CobraNet® output streams. The internal DSP processing provides a 16 channel AutoMixer with signal processing for AGC, EQ, High Pass, Low Pass, Compressor and Delay on analog input and output channels, including remote triggering of camera positioning presets. In addition, 3 AMX 8.8CN's can be combined to make a 42x24 matrix. The unique benefit of the AMX 8.8CN is to combine the price point of a simple Automixer product with the networking capability of a CobraNet® port. The cost savings of the MX 8.8CN were generated by stripping out all the ancillary contact closures, digital I/O ports, serial ports, relays, VCA's and wall controller ports found on other CobraNet® products.

In a typical system, one or more AMX 8.8CN's provides the mixing and processing needs of an individual meeting room, while the CobraNet® port offers integration with the DSP in the control room for large Hotel Banqueting or Convention Center events. The AMX 8.8CN saves budget by replacing the costly CobraNet® interfaces in each meeting room, as well as reducing the load on the control room DSP. This benefits the Installer (sells more network solutions), Consultant (meets budget) and Customer (better value).

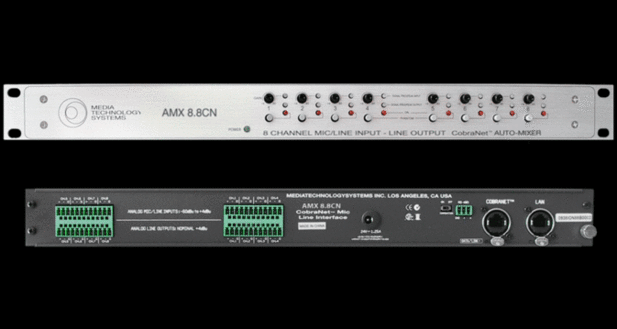

MTS CobraNet Automixer
MTS AMX8.8 CobraNet Automixer

Click this button to download the AMX 8.8 product brochure.
  • Full rack width 1U high CobraNet® interface
  • Professional Audio signal interfacing, +4dB nominal maximum/+24dBu peak signals
  • 8 balanced 3.5mm Euroblock inputs, each with 60dB of variable Gain via the front panel potentiometers
  • 8 balanced 3.5mm Euroblock outputs
  • Switchable phantom power of +24volts on each input
  • 16 input and 16 output channels from/to the network offering 24x24 local routing capability
  • 100MIPS internal DSP
  • RS485 serial bridging
  • Split Cobranet audio LAN port and Ethernet control LAN ports for VLAN traffic
  • Professional standard Ethercon LAN connectors
