MTSi ION 8.8 Specifications

The Media Technology Systems ION8.8 is a CobraNet® full rack width1U rack mount configuration with 8 analog mic/line inputs and 8 analog outputs

Overview       Specifications

The MTSI ION 8.8 is CobraNet® full rack width 1U rack mount configuration with 8 analog mic/line inputs and 8 analog Line outputs. The ION 8.8 input section converts 8 channels of analog audio into a CobraNet® audio stream. The Euroblock input connectors accept a +4dBu nominal, max +24dBu peak, balanced audio signals. Each channel has 60dB of gain range set via the front panel gain control. 24V Phantom power is switch selectable on each input. Per channel Signal Present/Peak indicators allow setting of gain for optimum headroom, low noise and clip avoidance.

ION 8.8 (and 4.4) provides 100MPS of embedded DSP processing for simple routing and processing, with ducking, EQ filters, high pass/low pass filters and compressors on each analog channel (see MTS GUI and ION series configuration software on the MTS website for details). Additionally the ION 4.4 and 8.8 provide a 20x20/24x24 respectively matrix input-output router that can receive up to 16 incoming audio streams and transmit up to 16 outgoing network audio streams.

MTS 8 Channel CobraNet

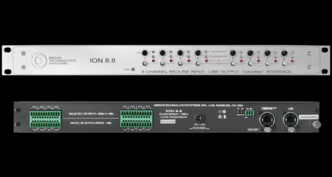

ION 8.8 8-Channel CobraNet Processor
•Paging/Communications projects
•Convention Centers
•Corporate Meeting rooms
•Classrooms and Lecture rooms

  • Full rack width 1U high CobraNet® interface

  • 8 Analog Mic/Line Inputs and 8 Analog Line level Outputs
  • 16 Cobranet Inputs, 16 CobraNet® Outputs
  • 24x24 Input/Output DSP Router
  • THD: <0.1%
  • Input/Output levels: +4dBu nominal: +22dBu clip
  • Input sensitivity: -56dBu (nominal) at maximum gain produces +4dBu (nominal). +4dBu (nominal) at minimum gain produces +4dBu (nominal)

  • Maximum gain: 60dB
  • Input: 4kohms balanced and RF filtered. EIN 20Hz-20kHz, less than -119dBu (+56dB gain setting)
  • Output:150 ohms balanced, 600ohm minimum load
  • Hum and Noise >70dB below rated output
  • 100MIPS internal DSP
