MTSi ION 4.4 Specifications

The Media Technology Systems ION4.4 is a CobraNet® 1/2 width 1U rack mount configuration with 4 analog mic/line inputs and 4 analog outputs

Overview       Specifications

The ION4.4 input section converts 4 channels of analog Mic/Line audio input into an CobraNet® audio stream. TheEuroblock input connectors accept a +4dBu nominal max/+24dBupeak balanced audio signal and has a 60dB gain potentiometer. In addition, front panel switches are provided to apply +24volts phantom power to each input.

The ION4.4 also provides 100MIPS of embedded DSP processing for simple routing and processing, with Ducking, EQ filters, HP/LP filtersand Compressors on each analog output channel  (see “MTS GUI”-the ion series configuration software for details). In addition theION4.4 provides a 20x20/24x24 (respectively) matrix Input/Output router that can receive up to 16 incoming networkaudio streams and transmit up to 16 outgoing network audio streams.

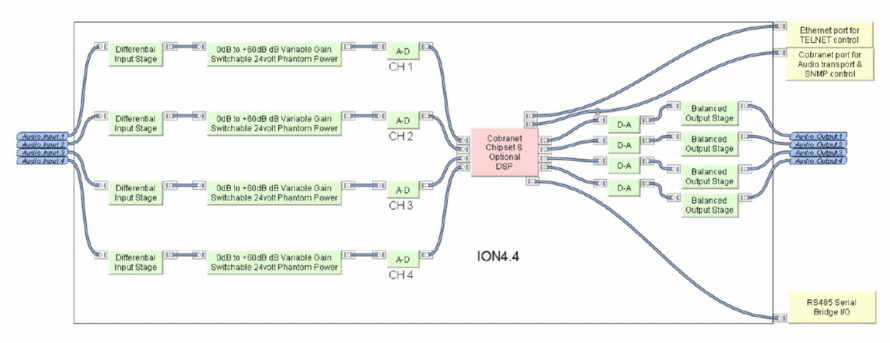

System block diagram of the ION4.4 (below)
•Paging/Communications projects
•Convention Centers
•Corporate Meeting rooms
•Classrooms and Lecture rooms

  • 1/2 rack width 1U high CobraNet® interface: Riser, Wall, & Undertable
    mounting options (rack mount ears included)

  • 4 Analog Mic/Line Inputs and 4 Analog Line level Outputs
  • 16 Cobranet Inputs, 16 CobraNet® Outputs
  • 20x20 Input/Output DSP Router
  • THD: <0.1%
  • Input/Output levels: +4dBu nominal: +22dBu clip
  • Input sensitivity: -56dBu (nominal) at maximum gain produces +4dBu (nominal). +4dBu (nominal) at minimum gain produces +4dBu (nominal)

  • Maximum gain: 60dB
  • Input: 4kohms balanced and RF filtered. EIN 20Hz-20kHz, less than -119dBu (+56dB gain setting)
  • Output:150 ohms balanced, 600ohm minimum load
  • Hum and Noise >70dB below rated output
  • 100MIPS internal DSP
